EXCAVATOR - AUGER MOTOR (5.5T) for Hire in Botany and Sydney.

Code: 200655

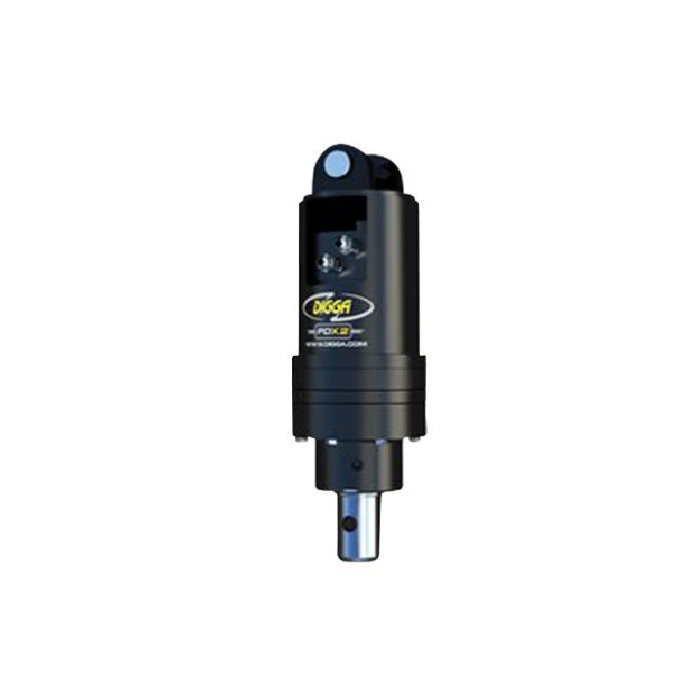

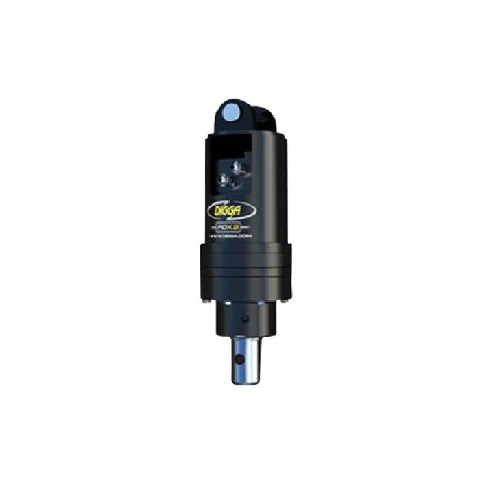

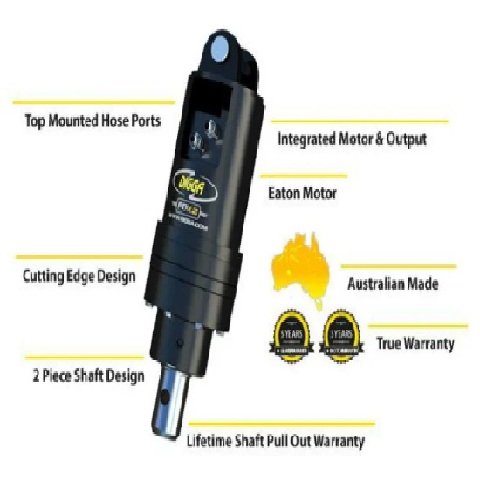

Excavator - Auger Motor (5.5t) for Hire in Botany and Sydney. The Excavator - Auger Motor (5.5T) is to be used in conjunction with an excavator. The unit is designed for post hole digging, landscaping, foundations, retaining walls and fencing.

Make: DIGGA

Model: PD5

Width: 240mm

Length: 579mm

Dry Weight: 62kg

Power: 25Kw

Perfect for landscaping, tree planting, foundation piles, screw pile installations, ground source heat pumps, pole and mast installations

BROCHURE

OPERATING MANUAL

INSURANCE

Nominal Torque at 69 bar:
39083 Nm
  28822 ft-lb
Nominal Torque at 83 bar:
47012 Nm
  34670 ft-lb
Nominal Torque at 97 bar:
54942 Nm
  40518 ft-lb
Nominal Torque at 110 bar:
62306 Nm
  45948 ft-lb
Nominal Torque at 124 bar:
70235 Nm
  51796 ft-lb
Nominal Torque at 138 bar:
78165 Nm
  57644 ft-lb
Nominal Torque at 152 bar:
86095 Nm
  63492 ft-lb
Nominal Torque at 166 bar:
94025 Nm
  69340 ft-lb
Nominal Torque at 179 bar:
101388 Nm
  74770 ft-lb
Nominal Torque at 193 bar:
109318 Nm
  80618 ft-lb
Nominal Torque at 207 bar:
117248 Nm
  86466 ft-lb
Nominal Torque at 221 bar:
125177 Nm
  92314 ft-lb
Nominal Torque at 234 bar:
132541 Nm
  97744 ft-lb
Nominal Torque at 248 bar:
140471 Nm
  103592 ft-lb
Nominal Torque at 262 bar:
148400 Nm
  109440 ft-lb
Nominal Torque at 276 bar:
156330 Nm
  115288 ft-lb
Nominal Torque at 290 bar:
164260 Nm
  121136 ft-lb
Nominal Torque at 303 bar:
171623 Nm
  126566 ft-lb
Nominal Torque at 317 bar:
179553 Nm
  132414 ft-lb
Nominal Torque at 331 bar:
187483 Nm
  138262 ft-lb
Nominal Torque at 345 bar:
195413 Nm
  144110 ft-lb
Nominal Torque at 359 bar:
203343 Nm
  149958 ft-lb
Nominal Torque at 372 bar:
210706 Nm
  155388 ft-lb
Nominal Torque at 386 bar:
218636 Nm
  161236 ft-lb
Nominal Torque at 400 bar:
226566 Nm
  167084 ft-lb
Nominal Torque at 414 bar:
234495 Nm
  172932 ft-lb
Nominal Torque at 428 bar:
242425 Nm
  178780 ft-lb
Nominal Torque at 441 bar:
249789 Nm
  184210 ft-lb
Nominal Torque at 455 bar:
257718 Nm
  190058 ft-lb
Nominal Torque at 469 bar:
265648 Nm
  195906 ft-lb
Nominal Torque at 483 bar:
273578 Nm
  201754 ft-lb
Nominal Torque at 497 bar:
281508 Nm
  207602 ft-lb
Nominal Torque at 510 bar:
288871 Nm
  213032 ft-lb
Nominal Torque at 524 bar:
296801 Nm
  218880 ft-lb
Nominal Torque at 538 bar:
304731 Nm
  224728 ft-lb
Nominal Torque at 552 bar:
312661 Nm
  230576 ft-lb
Nominal Torque at 566 bar:
320590 Nm
  236424 ft-lb
Nominal Torque at 579 bar:
327954 Nm
  241854 ft-lb
Nominal Torque at 593 bar:
335884 Nm
  247702 ft-lb
Nominal Torque at 607 bar:
343813 Nm
  253550 ft-lb
Nominal Torque at 621 bar:
351743 Nm
  259398 ft-lb
Nominal Torque at 634 bar:
359106 Nm
  264828 ft-lb
Nominal Torque at 648 bar:
367036 Nm
  270676 ft-lb
Nominal Torque at 662 bar:
374966 Nm
  276524 ft-lb
Nominal Torque at 676 bar:
382896 Nm
  282372 ft-lb
Nominal Torque at 690 bar:
390826 Nm
  288220 ft-lb
